SCAN-TO-CAD SOFTWARE MODULE

Part of the Creaform Metrology Suite™, Scan-to-CAD is a post-treatment software module designed to optimize meshes and prepare 3D scans for 3D printing. Scan-to-CAD also enables designers and engineers to finalize 3D scan data and use it in their reverse engineering and product development workflows.

With a fast processing time that promptly optimizes the mesh and extracts all needed geometrical information, designers and engineers can quickly go back to the CAD workflow they already know.

Satisfied with its performance and complete toolset, thousands of users have already endorsed Scan-to-CAD, selecting it as their favorite complement to CAD software.

Scan-to-CAD provides only the needed tools and features to integrate 3D scan data into your preferred CAD software, leveraging its design and modeling capabilities. Its intuitive functions let you easily extract information from the mesh and transfer it to generate CAD entities for 3D modeling.

SCAN-TO-CAD SOFTWARE MODULE

Benefits

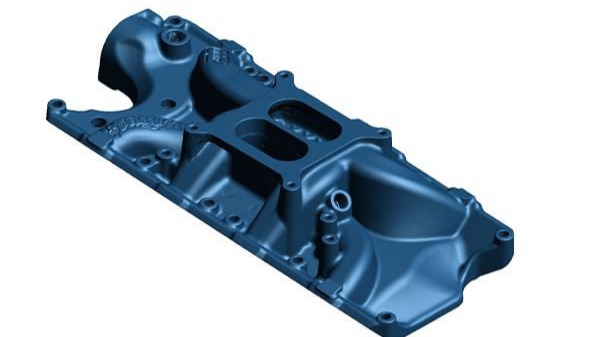

Mesh Editing

Scan-to-CAD offers simple yet efficient tools for preparing 3D scan meshes for reverse engineering or 3D printing.

*Clean meshes
*Fill holes
*Merge meshes
*Decimate meshes
*Make meshes watertight

HMR High Tech Machine Tools, 3D Scanning, VXModel, editing, scan, CAD, IGES, STEP

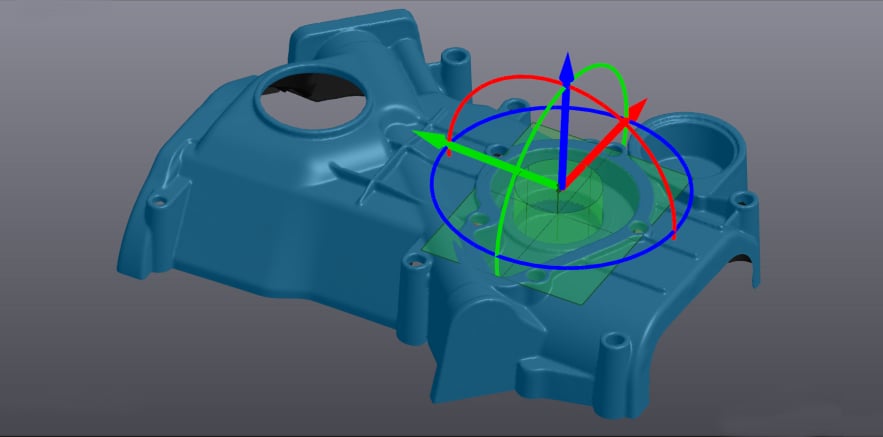

Alignment

The Scan-to-CAD alignment tool makes it easy to perform the crucial step of aligning 3D scans to the coordinate system before exporting.

*Use datum/entities suited to the design needs
*Best fit alignment

HMR High Tech Machine Tools, 3D Scanner, South Africa, Mesh Editing, VXModel, Reverse Engineering

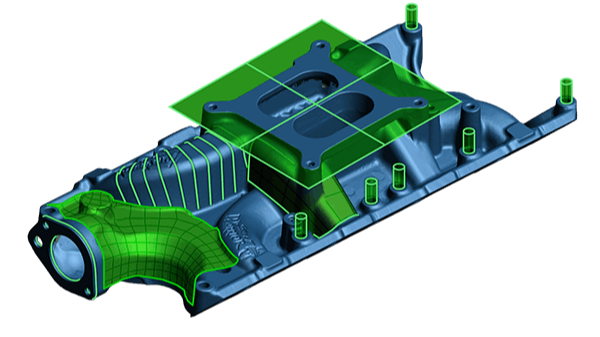

Nurbs Surface and Geometrical Entities

Scan-to-CAD simplifies the generation of NURBS surfaces for characterizing freeform regions and enables the extraction of geometric entities from the mesh to complete designs in any CAD software.

*Auto surface
*Manual surface
*Entities from plan to slot by cross‑section
*Curves

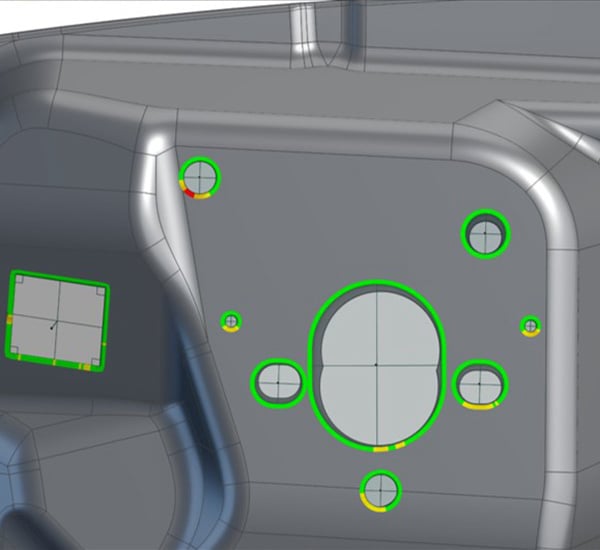

Sheet Metal Add-On
The most accurate and repeatable method for measuring sheet metal parts, regardless of user expertise or environmental conditions.

VXmodel™ : How to transfer your scan to CAD

One of the primary applications for using a 3D scanner is reverse engineering, transforming a physical part into a useful digital format that you can quickly implement in your design and other downstream applications.
