HMR High Tech Machine Tools is the leading supplier for the VXmodel: SCAN-TO-CAD SOFTWARE MODULE A simplified way to integrate 3D scan data into your CAD and 3D printing process

VXmodel: SCAN-TO-CAD SOFTWARE MODULE

VXmodel: SCAN-TO-CAD SOFTWARE MODULE

HMR High Tech Machine Tools is the sole supplier of the VXmodel Scan to CAD Module in South Africa.

A simplified way to integrate 3D scan data into your CAD and 3D printing process.

VXmodel is a post-treatment software that directly integrates into VXelements, and enables finalizing 3D scan data to use directly in any 3D printing or CAD software. VXmodel provides the simplest and fastest path from 3D scans to your computer-aided design or additive manufacturing workflow.

A great addition to any Creaform 3D scanner, VXmodel is simple but powerful, including only the features necessary to complement your CAD software. You already have all the design and modeling capabilities in your software: VXmodel only provides the tools you need for a quick and seamless integration into your scan-based design process.

Export to any CAD platform using standard format (.iges, .step, .dxf)


Benefits
VXmodel provides simple, yet efficient tools required to prepare the 3D scan mesh for reverse engineering or 3D printing.
Mesh Editing

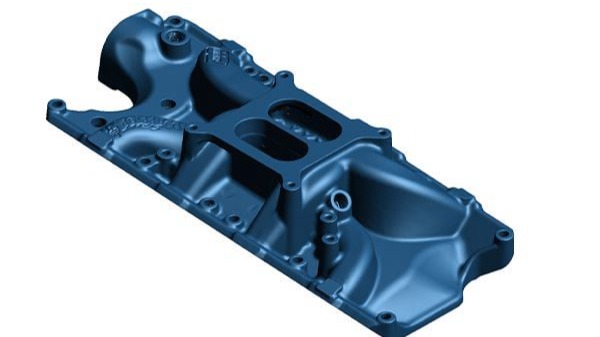

VXmodel provides simple, yet efficient tools required to prepare the 3D scan mesh for reverse engineering or 3D printing.

*Clean meshes
*Fill holes
*Merge meshes
*Decimate meshes
*Make meshes watertight

The VXmodel alignment tool highly flexible, straightforward and not limiting.
Alignment

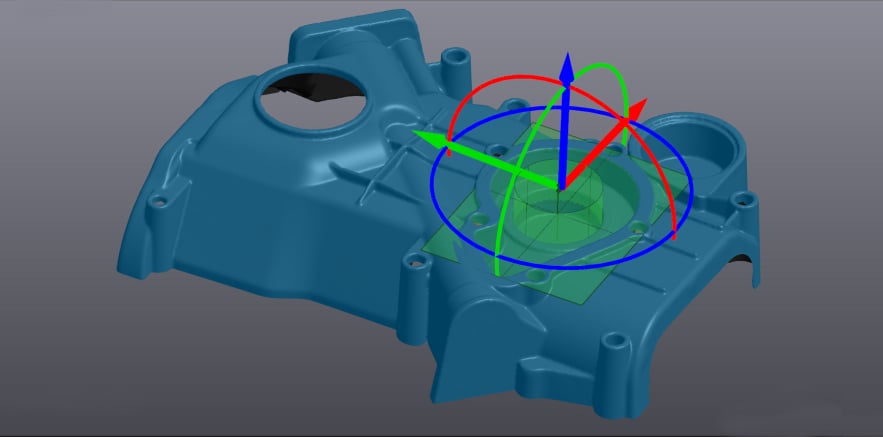

Scans must be aligned to the coordinate system before export, a simple but crucial finalization step. The VXmodel alignment tool highly flexible, straightforward and not limiting.

*Use datum/entities suited to the design needs
*Best fit alignment

VXmodel enables you to easily generate NURBS surfaces for characterizing freeform surfaces.
Nurbs Surface and Geometrical Entities

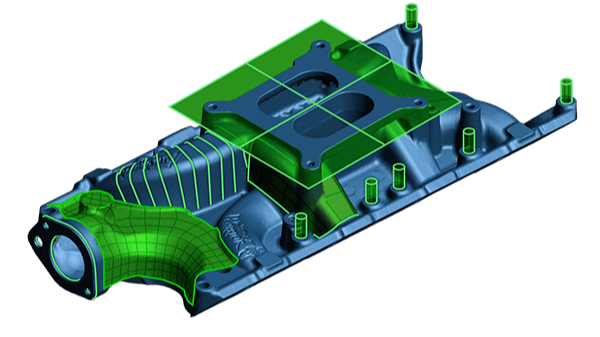

VXmodel enables you to easily generate NURBS surfaces for characterizing freeform surfaces. Primitive entities can be easily extracted from the mesh to complete the design in a CAD software.

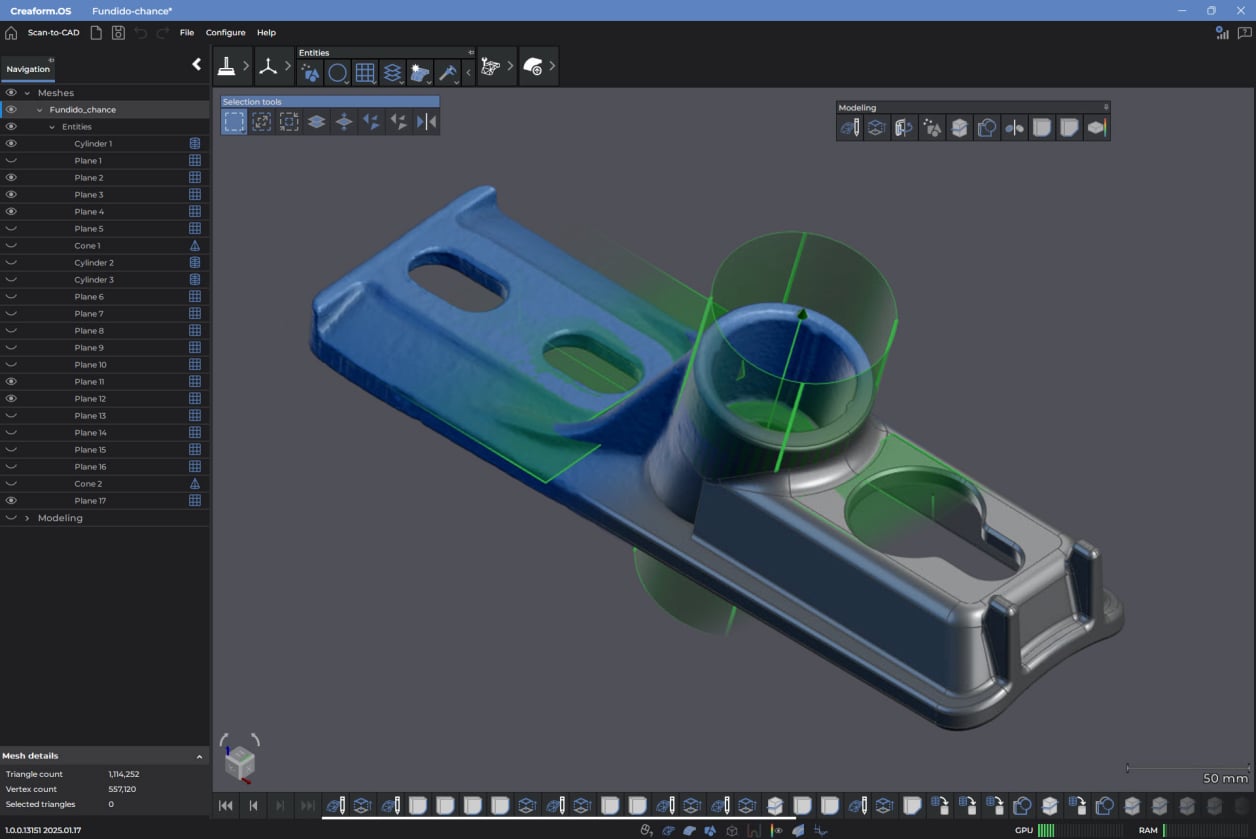

*Auto surface
*Manual surface
*Entities from plan to slot by cross‑section
*Curves

VXmodel: How to transfer your scan to CAD

One of the primary applications for using a 3D scanner is reverse engineering, transforming a physical part into a useful digital format that you can quickly implement in your design and other downstream applications.
