VXinspect™ is an intuitive and powerful 3D inspection software designed for first article inspection (FAI) and production quality control.

VXInspect

VXINSPECT: DIMENSIONAL INSPECTION SOFTWARE MODULE

The 3D inspection software designed for first article inspection or quality control

HMR High Tech Machine Tools is the sole supplier of the dimensional inspection software module in South Africa.

VXinspect™ is an intuitive and powerful 3D inspection software designed for first article inspection (FAI) and production quality control. Directly integrated into Vxelements, it provides the simplest integration of probing, 3D scanning and photogrammetry measurements into quality control workflows.

Whether for performing part-to-CAD inspection or to build an entire inspection program, its intuitive interface is the best solution for all inspection workflows, with no compromises made on measurement quality and GD&T requirements.

VXinspect is available in two versions, depending on your type of work and workflow. VXinspect is a user-friendly software for scan data inspections that streamlines single part root cause analyses. VXinspect|Elite™ is a complete inspection and dimensional analysis software for advanced quality control applications.

Benefits

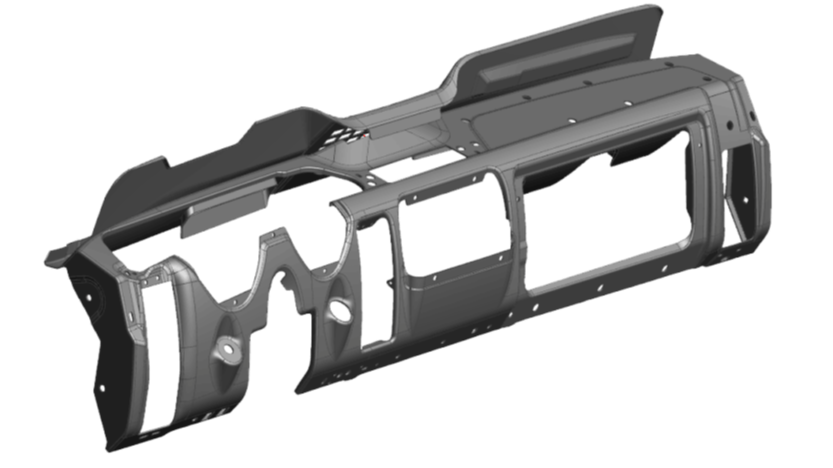

 VXinspect supports CAD import, allowing direct measurement comparisons with CAD models to better understand part manufacturing defects.
CAD Import

VXinspect supports CAD import, allowing direct measurement comparisons with CAD models to better understand part manufacturing defects.

.IGES
.STEP

Vxinspect is the first software to seamlessly integrate photogrammetry, single‑point touch probe and non-contact measurement (scan) into one unique and intuitive software interface.
Multiple Measurement Mode

Vxinspect is the first software to seamlessly integrate photogrammetry, single‑point touch probe and non-contact measurement (scan) into one unique and intuitive software interface.

Photogrammetry

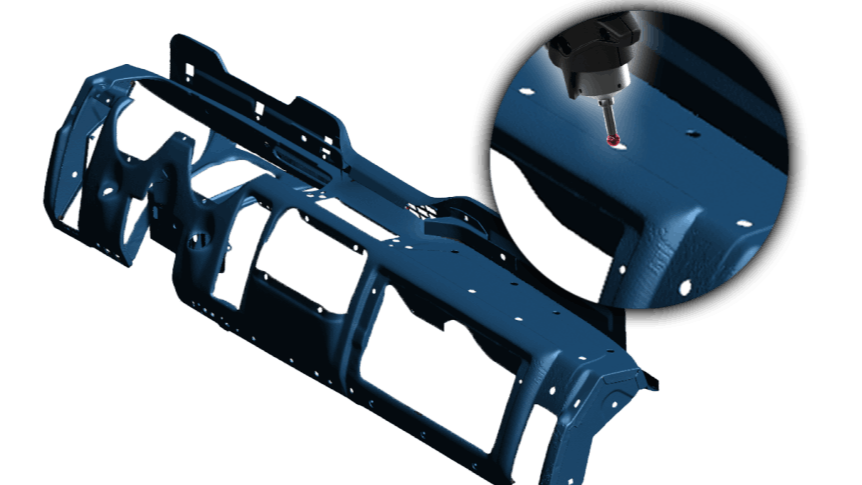

Probing
3D Scanning
Mesh import

Aligning the part leads to more accurate results throughout the process, from data acquisition up to the final inspection report.
Alignment

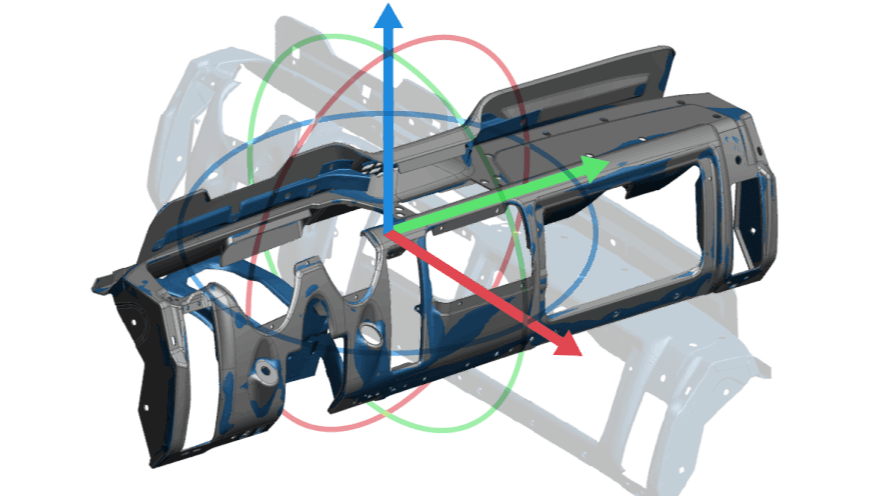

Before starting the dimensional inspection process, the position and orientation of the object in space are of the utmost importance. Aligning the part leads to more accurate results throughout the process, from data acquisition up to the final inspection report.

Entity selection
Best fit
Datum
RPS (Reference Points System)

VXinspect sophisticated algorithms and calculation methods offer an accessible way to apply GD&T practices and principles to the inspection project, even for users without extensive experience in GD&T notions.
GD&T

VXinspect sophisticated algorithms and calculation methods offer an accessible way to apply GD&T practices and principles to the inspection project, even for users without extensive experience in GD&T notions.

Form and orientation tolerance
Profile and localization tolerance
Datum Reference Frame (DRF) construction using geometric counterparts
