NDT PIPELINE INSPECTION FOR OIL AND GAS INDUSTRY

The Safest NDT Solutions for Pipeline Integrity Assessment

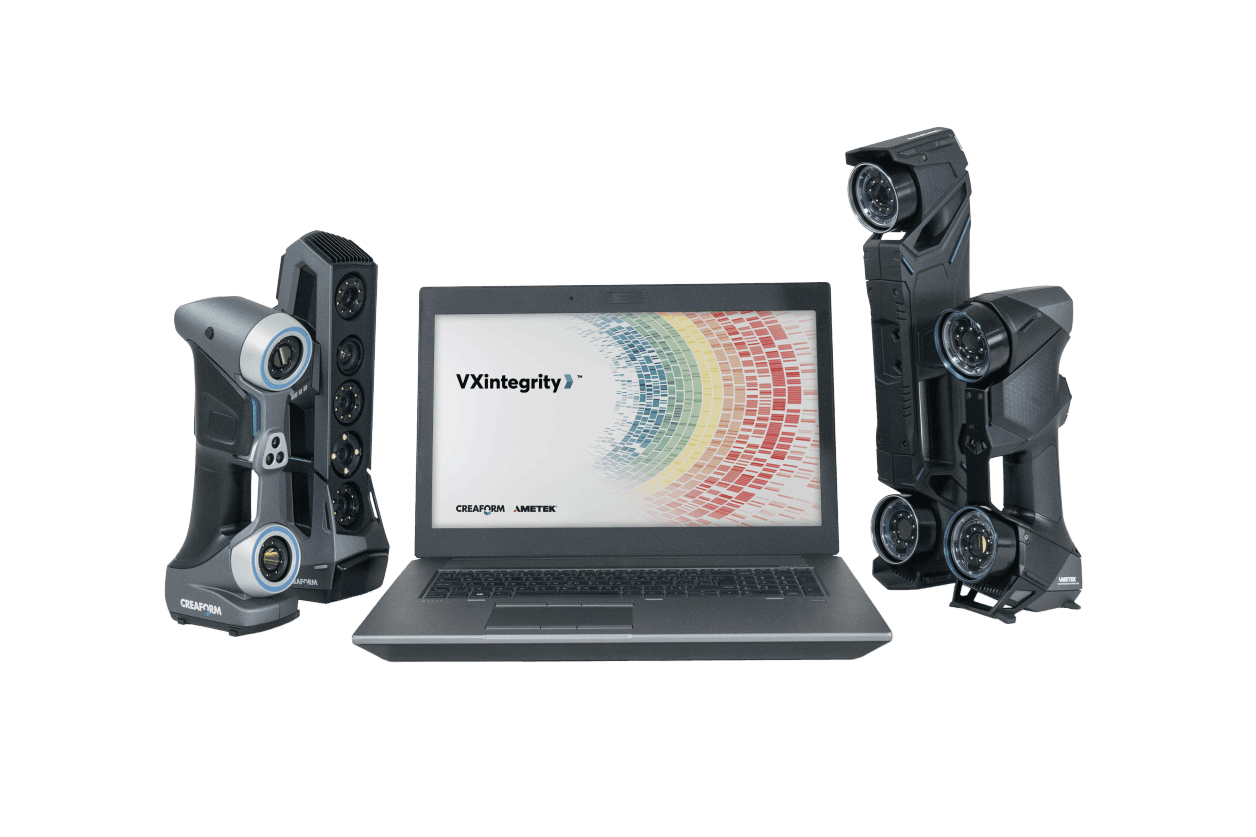

CREAFORM’s 3D SCANNER BUNDLE WITH VXINTEGRITY™  – PIPELINE SOFTWARE: PROVEN NDT TECHNOLOGY FOR THE BEST QUALITY OF SERVICE

HMR High Tech Machine Tools, NDT, Pipecheck, Pipleine, 3D Scanner, 3D Scanning, South Africa, Gas, Mining, corrosion, inspection, VXIntegrity Software, CAD
THE MOST ACCURATE PIPELINE ASSESSMENTS WITH NDT 3D SCANNERS

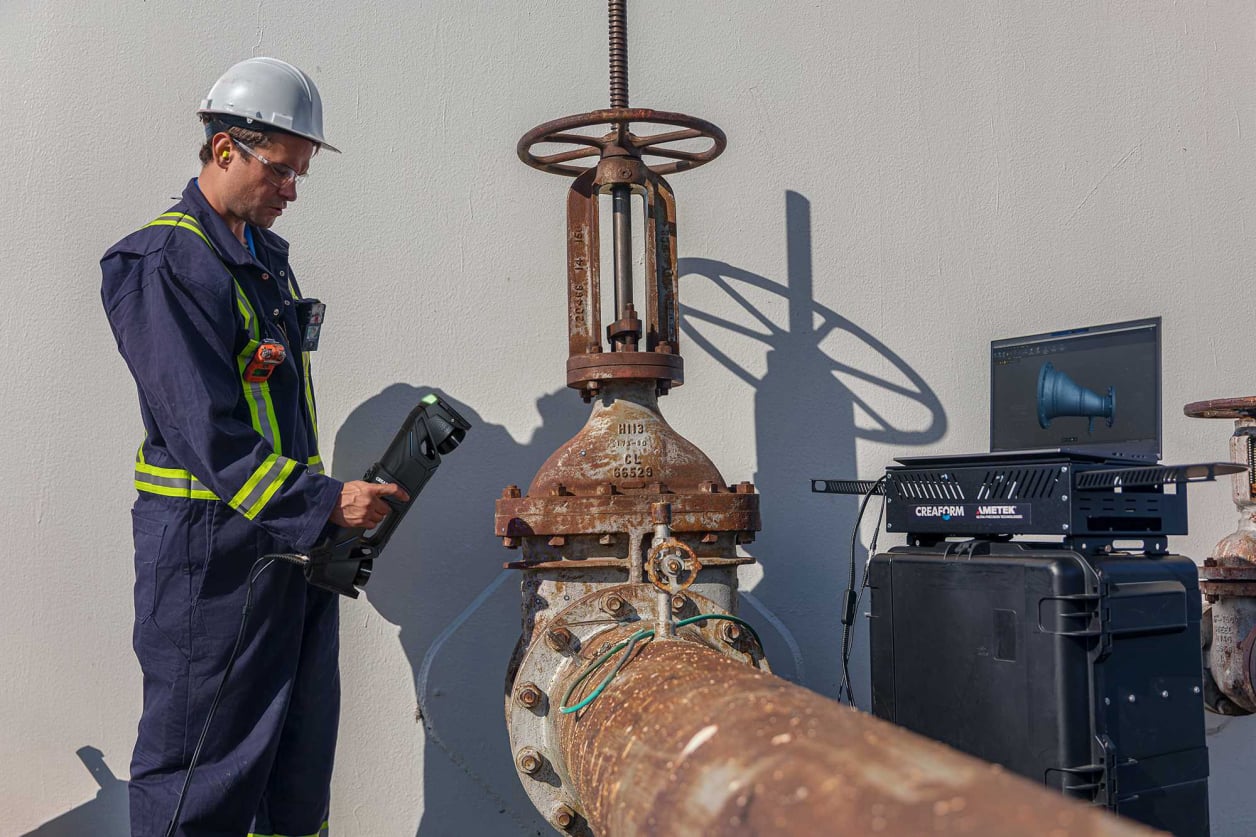

As the standard for portable metrology-grade 3D scanners, the HandySCAN™ 3D delivers accurate and repeatable results in all work conditions, whether under direct sunlight or in harsh environments. Not only can service companies fully trust HandySCAN™ 3D’s reliable data but they can also count on its speed to take measurements, deliver results, and complete inspection quickly and efficiently. The HandySCAN™ 3D is your go-to NDT solution for pipeline inspections.

HMR High Tech Machine Tools, NDT, Pipecheck, Pipleine, 3D Scanner, 3D Scanning, South Africa, Gas, Mining, corrosion, inspection, VXIntegrity Software, CAD
THE ULTIMATE 3D SCANNER FOR SURFACE DAMAGE ASSESSMENT

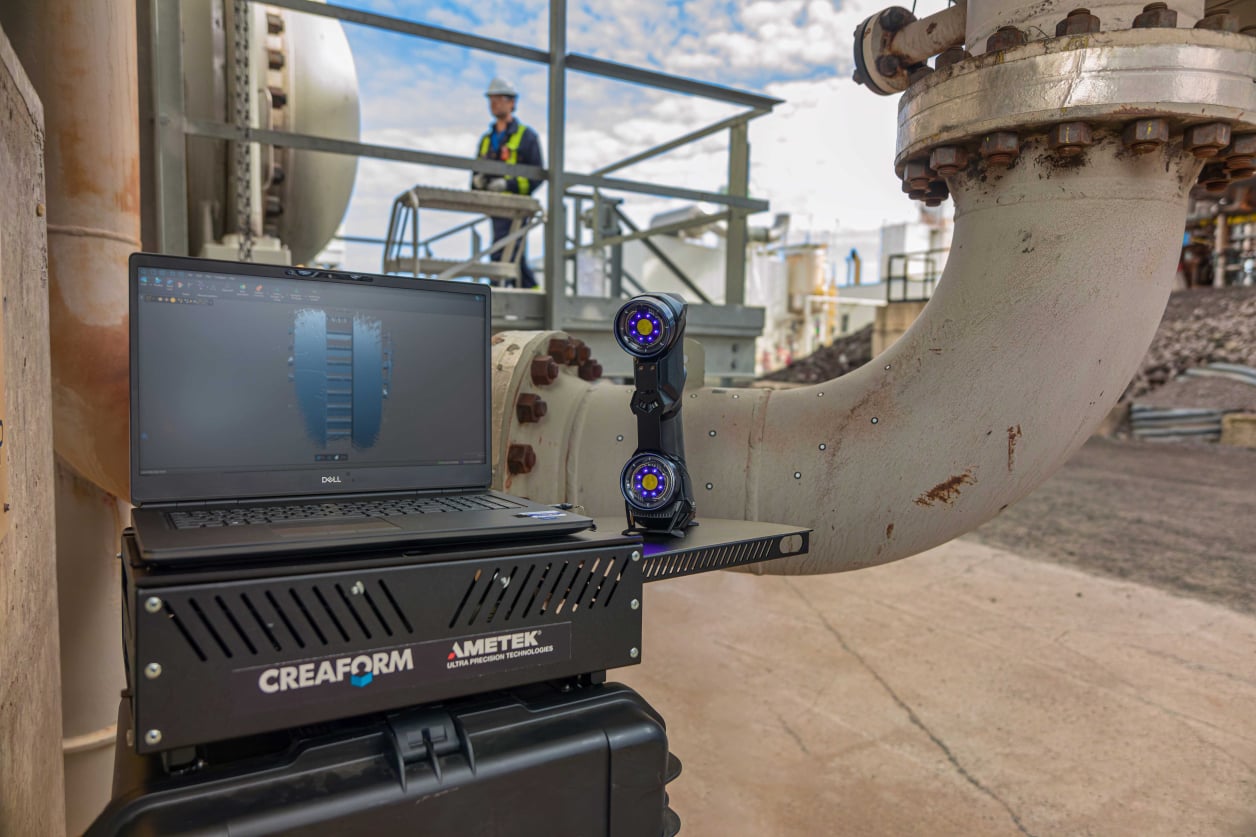

The MAX series offers the fastest and easiest 3D scanning experience for NDT technicians inspecting pipelines for various types of damage, particularly corrosion. The MAX series is designed for measuring large objects, offering fast, metrology-grade accuracy for objects up to 15 metres, while retaining fine detail capture on smaller areas, with up to 75% fewer targets needed.


Technical Specification

Click here for technical specification
HMR High Tech Machine Tools, NDT, Pipecheck, Pipleine, 3D Scanner, 3D Scanning, South Africa, Gas, Mining, corrosion, inspection, VXIntegrity Software, CAD

VXIntegrity™

VXIntegrity™ Pipecheck, also known as simply Pipecheck, is a software module within the VXintegrity™ platform by Creaform. It's specifically designed for non-destructive testing (NDT) of pipelines, using 3D scanning technology to assess their integrity and identify potential issues.

Corrosion analysis: Identifies and measures corrosion spots with high accuracy, even on complex geometries.
Denting analysis: Detects and quantifies dents caused by mechanical damage, offering a more efficient solution than traditional tools.
Wrinkle analysis: Calculates the depth and extent of wrinkles on pipelines, providing valuable insights into their structural integrity.
Reporting tools: Generates detailed reports with visuals and measurements, simplifying data analysis and decision-making.
Fast and efficient: 3D scanning with Pipecheck allows for rapid data acquisition and analysis, minimizing inspection downtime.

Click here for more information

HMR High Tech Machine Tools, NDT, Pipecheck, Pipleine, 3D Scanner, 3D Scanning, South Africa, Gas, Mining, corrosion, inspection, VXIntegrity Software, CAD

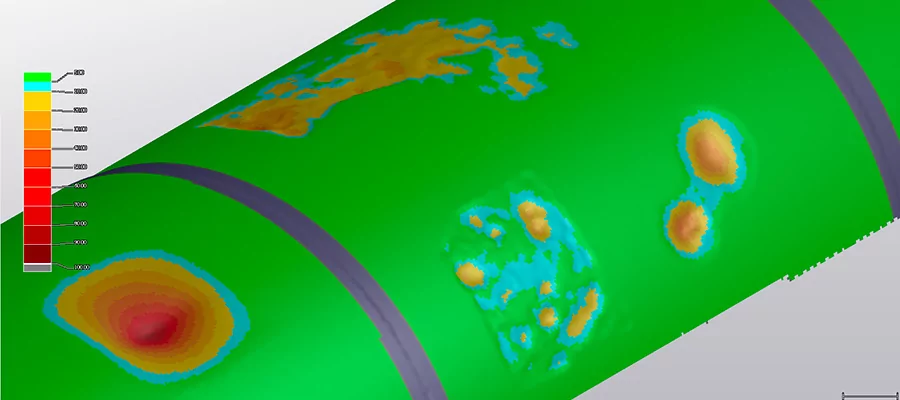

Corrosion

Scan:
High-resolution capture of all corroded areas
Fast surface acquisition to increase efficiency
Improved scanning performance for small features, such as pitting

Analyse:
Feature detection using real pipe geometry
Automatically applied interaction rules
Estimated burst pressure calculations
Enhanced virtual pit gauge capabilities near welds and obstacles
ASME Compliant: B31.G, B31.G modified, Effective Area

Report:
Excel report including worst-case profiles and predicted failure paths
Export to CSV available for further analysis
Mesh export available
Customizable pass/fail criteria
Snapshot tool for 3D reporting

HMR High Tech Machine Tools, NDT, Pipecheck, Pipleine, 3D Scanner, 3D Scanning, South Africa, Gas, Mining, corrosion, inspection, VXIntegrity Software, CAD

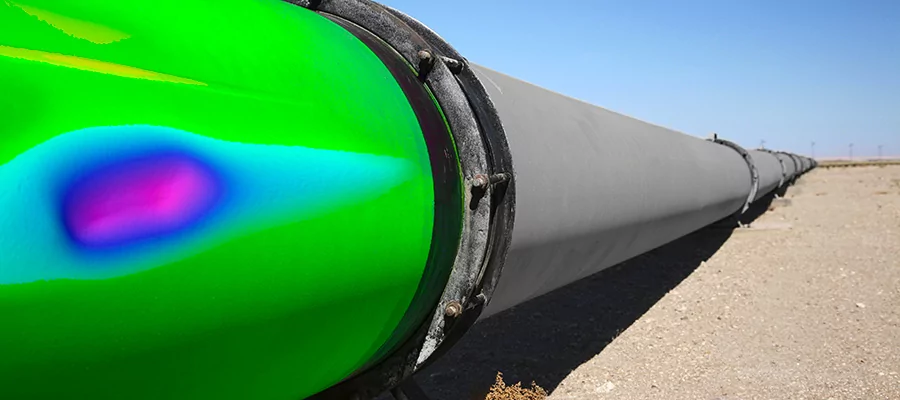

DENTING (MECHANICAL DAMAGE)

Scan:
High-resolution organized mesh file to enhance analysis capabilities
Fast measurements in any condition

Analyse:
Automatic maximum depth detection
Depth measurement using straight edge and pipe caliper
Strain-based analysis
Shoulder section available
ASME Compliant: B31.8R, Strain Analysis

Report:
Cross-section details (axial and circumferential)
CSV depth grid export
Mesh export available
Excel report with ovality measurements (diameter with caliper)

HMR High Tech Machine Tools, NDT, Pipecheck, Pipleine, 3D Scanner, 3D Scanning, South Africa, Gas, Mining, corrosion, inspection, VXIntegrity Software, CAD

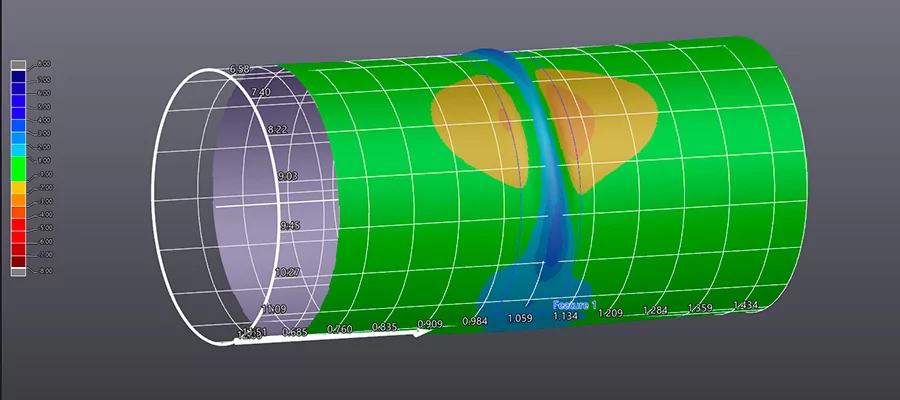

WRINKLE ANALYSIS

Scan:
Fast and user-independent 360° measurements
Scanning multiple wrinkles simultaneously during a single acquisition

Analyse:
Crest-to-trough depth of deformations
Wavelength
Circumferential extent
Diameter restriction

Report
Excel report with all standard information for wrinkle analysis

Accessories

HMR High Tech Machine Tools,3D Scanner, Workshop, South Africa, Pipecheck, Software, Scanning

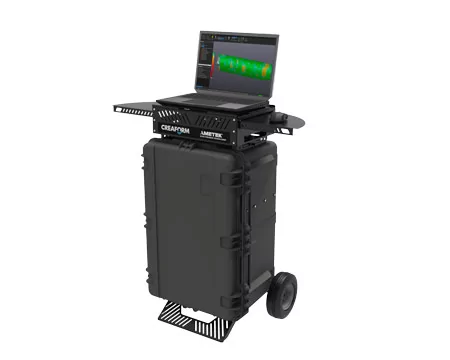

Take full advantage of Creaform’s 3D scanner portability with this accessory package. This all-in-one transport case converts into a convenient portable workstation especially designed to optimize field efficiency with its rugged design and multi-terrain wheels.

HMR High Tech Machine Tools, external battery, 3D Scanning, 3D Scanners, South Africa

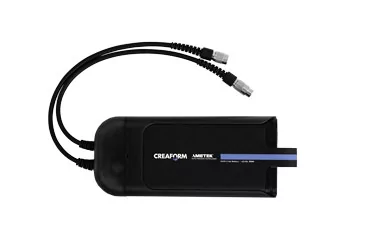

With 4 hours of autonomy, the NDT 3D scanner lightweight external battery facilitates data acquisition. Ideal for short-term projects, it provides easier than-ever access to confined spaces when combined with the HandySCAN™ 3D! Perfect for loadshedding!
