MetraSCAN™  3D - ISO 17025 accredited laboratory

HMR High Tech Machine Tools is proud to be the authorized reseller in South Africa for this highly accurate portable 3D Scanner.

Speed and accuracy combined with versatility
The MetraSCAN™ 3D optical CMM scanner line-up is specifically designed for manufacturing and metrology professionals who do not want to compromise on quality or efficiency. It can withstand any production environment, including shop floor vibrations, part movements and environmental instability—all while accelerating 3D measurement workflows.

When paired with the HandyPROBE™ , Creaform’s handheld optical coordinate measuring machine (PCMM) with probing capabilities, users can also harness the power of both 3D scanning and probing for complete, end-to-end inspection processes.


Technical Specification

Click here for technical specification
HMR High Tech Machine Tools, 3D Scanner, MetraSCAN, CMM, Scanning, Probing, 3D Scanner, South Africa, fast measurement rate

Let's talk measurement rate

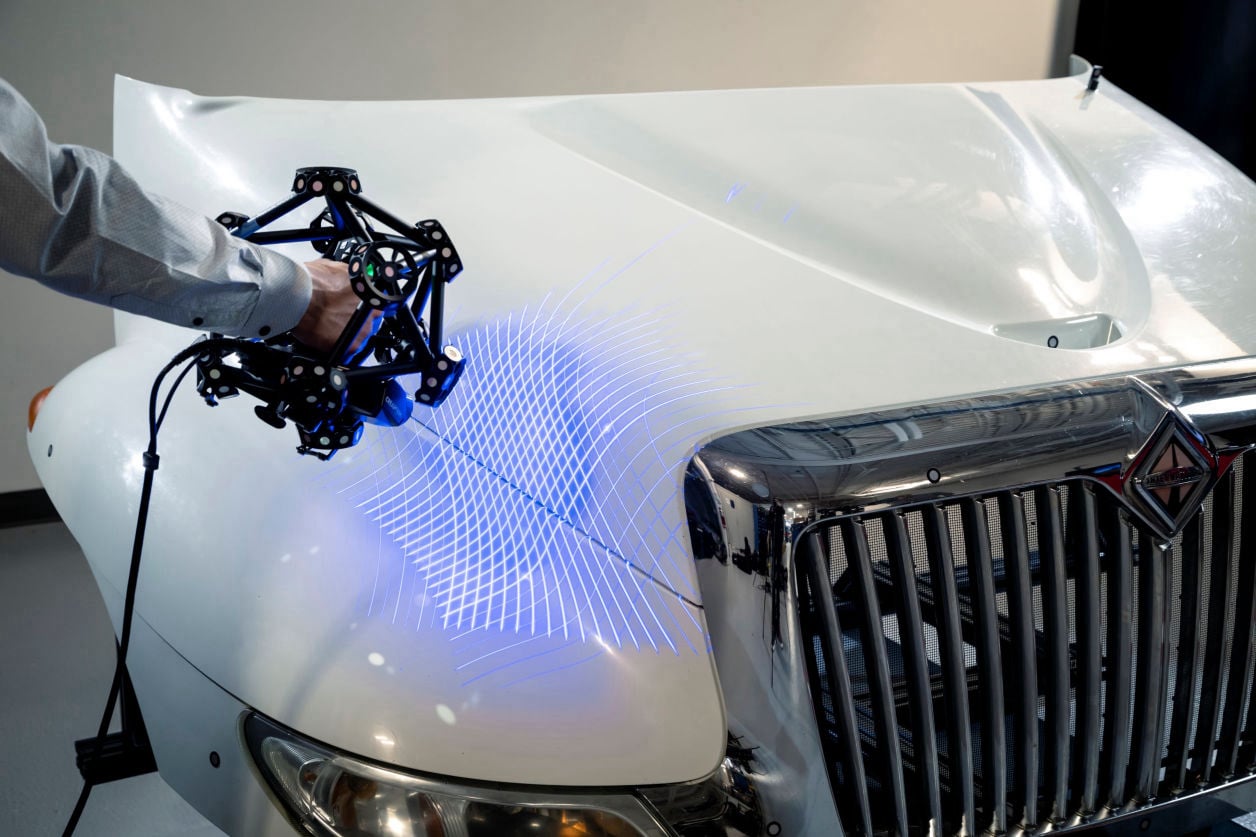

The MetraSCAN™ 3D features 30 laser crosses and a high measurement rate to accelerate 3D scanning processes. Thanks to quick setup and onboarding, real-time scans and ready-to-use files, your 3D scanning workflow will never have been faster.

1,800,000 measurements/second
Large scanning area for all types of parts
30 blue laser crosses (+1 extra line)
Ultra-quick setup
No warm-up time; users can be up-and-running in less than 5 minutes

HMR High Tech Machine Tools, 3D Scanner, MetraSCAN, CMM, Scanning, Probing, 3D Scanner, South Africa, fast measurement rate, high accuracy rate



Let's talk accuracy

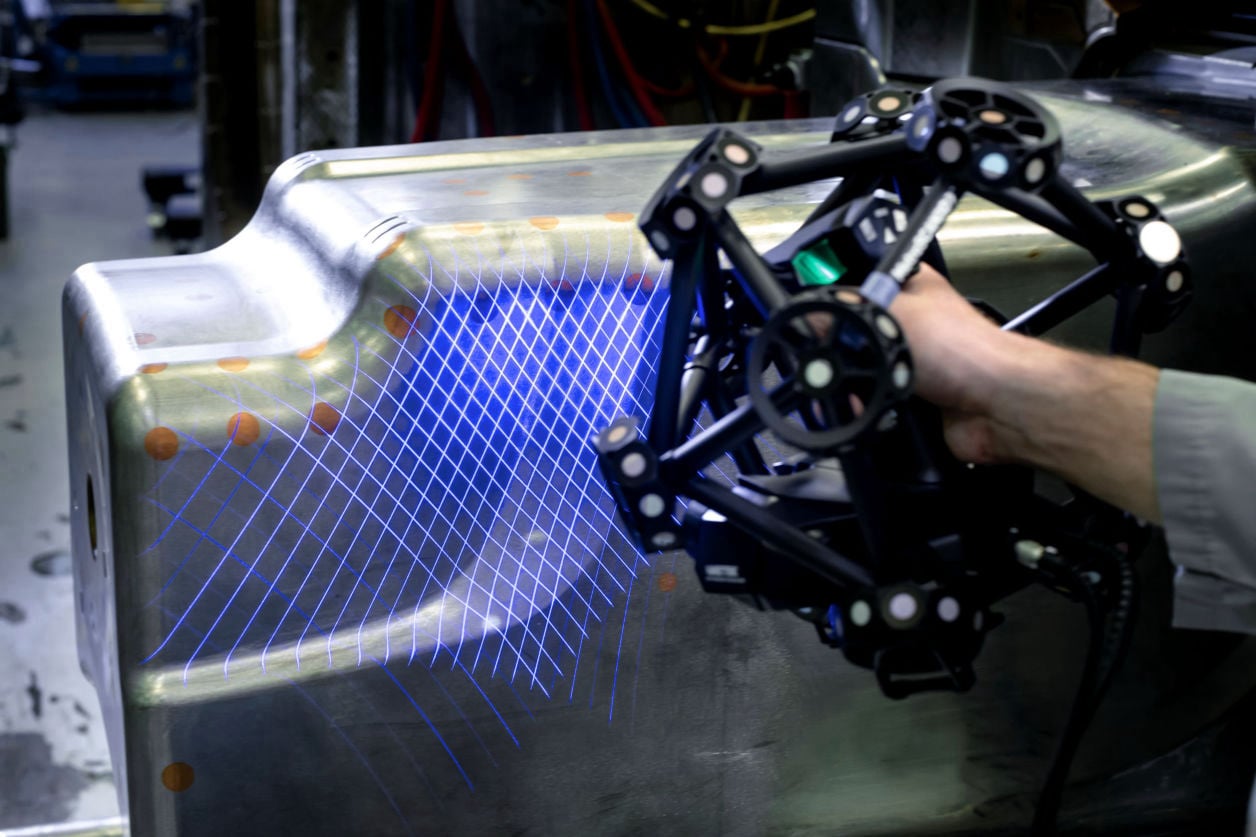

Free from any rigid measurement setup requirements, the MetraSCAN™ 3D is designed specifically for use on shop floors. It delivers accurate results, regardless of the measurement setup quality and user experience level. Thanks to the C-Track optical tracker that enables dynamic referencing, the scanner, the part and the optical tracker can move during inspection and still provide accurate measurements.

Accuracy
0.025 mm
Volumetric accuracy
0.064 mm
Reliable acceptance tests
Based on VDI/VDE 2634 Part 3 standard
ISO 17025 accredited laboratory
Shop floor accuracy with dynamic referencing
Measurement accuracy insensitive to environmental instabilities
High resolution
Measures all types of complex and highly detailed parts.

Additionals

HMR High Tech Machine Tools, HandyPROBE, portable optical CMM South Africa

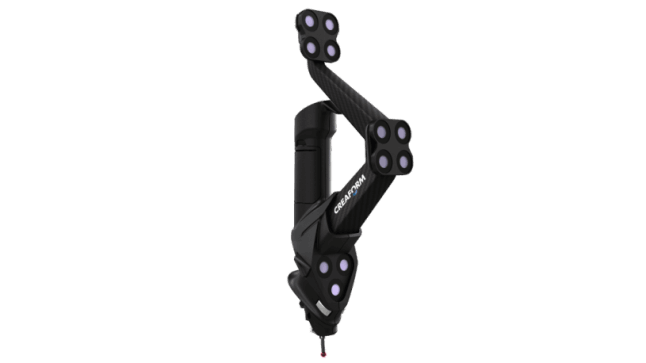

HandyPROBE™

This portable CMM outperforms traditional CMMs right on the shop floor. The only restriction is your arm! The HandyProbe™ offers unmatched accuracy and efficiency regardless of the instabilities in any production environment.

HMR High Tech Machine Tools, flexibility, shop-floor environments Creaform’s portable workstation. C Track shop-floor stand
Perfect tools for shop-floor environments

Perfect tools for shop-floor environments
Creaform’s portable workstation and C Track shop-floor stand add flexibility, mobility and reliability to Creaform systems across a production plant.

HMR High Tech Machine  Tools photogrammetry optical coordinate system, 3D Scanner, South Africa,
MaxSHOT™  3D: Optical coordinate measuring system

Do you consistently work on large-scale projects?

Meet the Creaform’s MaxSHOT 3D™. This is a photogrammetry optical coordinate system which can be used by an production team.

HMR High Tech Machine Tools, 3D Scanner, MetraSCAN, CMM, Scanning, Probing, 3D Scanner, South Africa, fast measurement rate, high accuracy rate, versatile

Let's talk verstility

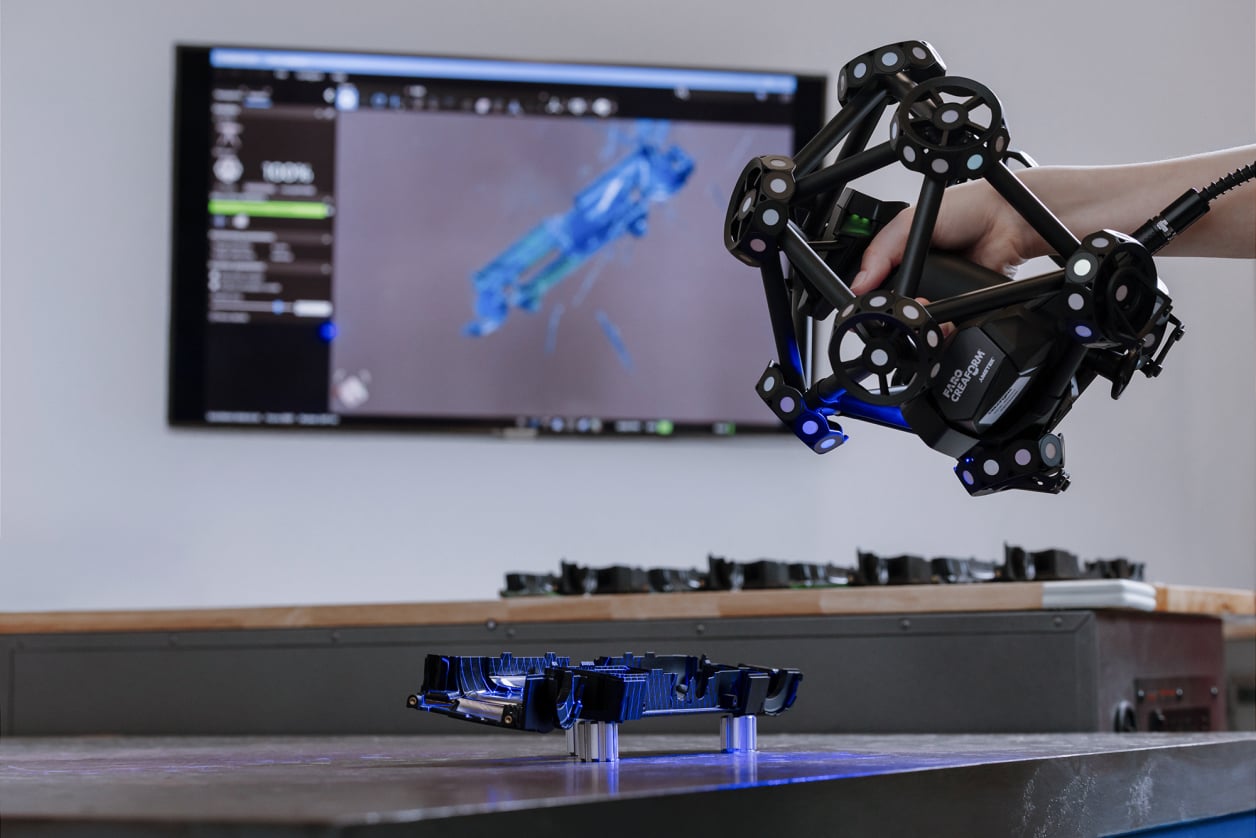

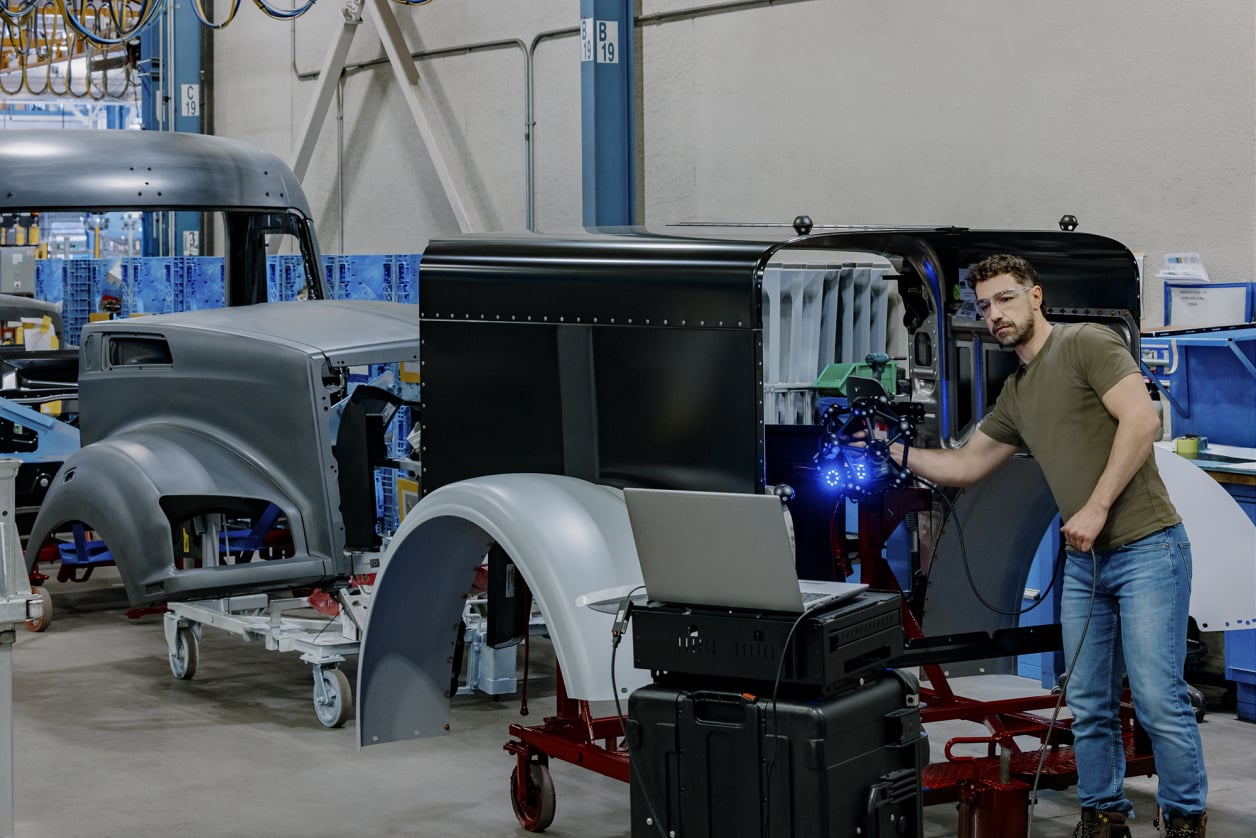

Highly versatile, the MetraSCAN™ 3D can be used to scan various part sizes and surface finishes in real time—all with the same device.

With its extendable measurement volume, parts of any shape, complexity, and geometry can be measured easily without loss in accuracy or requiring leapfrog.

Blue laser technology
Ideal for shiny and reflective surfaces
Large and easily extendable measurement volume
Wider than other portable CMMs
No leapfrog required
Optional HandyPROBE
Combination of both 3D scanning and probing
No targets required.

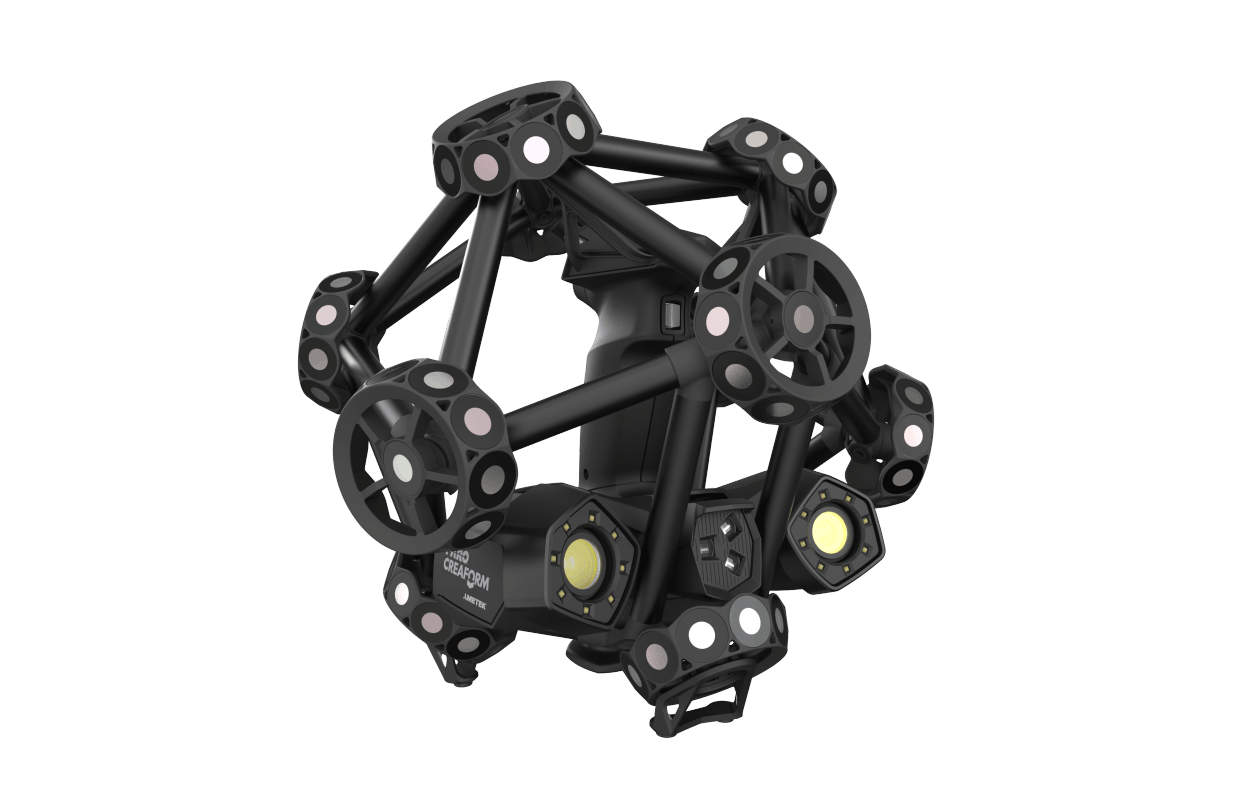

MetraScan™  Black Elite

HMR High Tech Machine Tools, 3D Scanner, Software, inspection and reverse engineering Software, 3D Scanning, fast accurate, South Africa

Software

Creaform’s VXelements™ provides a fully integrated 3D software platform that powers the entire fleet of 3D scanning and measurement technologies. It gathers all the essential elements (VXscan, VXprobe, VXshot) and tools into a user-friendly, simple and sleek working environment.


Compatible Software
3D systems | Innovmetric | Dassault | PTC | Siemens | Autodesk
